Ring magnetic pot
- Regular price
- $28.00 USD
- Regular price
-
- Sale price
- $28.00 USD
- Unit price
- per
Couldn't load pickup availability
Share
Ring magnetic pot

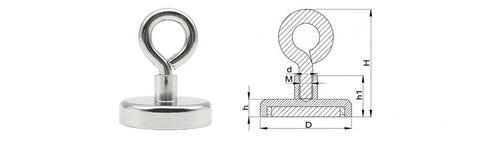

Product info
|
Model |
D (mm) |
d (mm) |
M |
h (mm) |
h1 (mm) |
H (mm) |
Weight (g) |
Breakaway (kg) |
|
HNF10 |
10 |
6 |
M3 |
5 |
12.6 |
31.5 |
5 |
1.5 |
|
HNF12 |
12 |
6 |
M3 |
5 |
12.6 |
31.5 |
7 |
2 |
|
HNF16 |
16 |
6.5 |
M4 |
5 |
13.5 |
35.7 |
12 |
8 |
|
HNF20 |
20 |
6.5 |
M4 |
7 |
15 |
37.8 |
21 |
12 |
|
HNF25 |
25 |
7.5 |
M5 |
8 |
17 |
44.9 |
33 |
25 |
|
HNF32 |
32 |
10 |
M6 |
8 |
18 |
47.8 |
54 |
34 |
|
HNF36 |
36 |
10 |
M6 |
8 |
18.5 |
49.8 |
64 |
50 |
|
HNF40 |
40 |
10 |
M6 |
8.8 |
18.8 |
50 |
93 |
65 |
|
HNF42 |
42 |
10 |
M6 |
8.6 |
18.8 |
50 |
93 |
72 |
|
YNF48 |
48 |
12 |
M8 |
11 |
24 |
61 |
150 |
81 |
|
YNF55 |
55 |
12 |
M8 |
12 |
28 |
63 |
231 |
95 |
|
YNF60 |
60 |
12 |
M8 |
15 |
28 |
66 |
283 |
160 |
|
YNF70 |
70 |
17 |
M10 |
17 |
34 |
84 |
531 |
200 |
|
YNF75 |
75 |
17 |
M10 |
18 |
35 |
85 |
555 |
270 |
|
YNF80 |
80 |
17 |
M10 |
18 |
35 |
85 |
744 |
300 |
